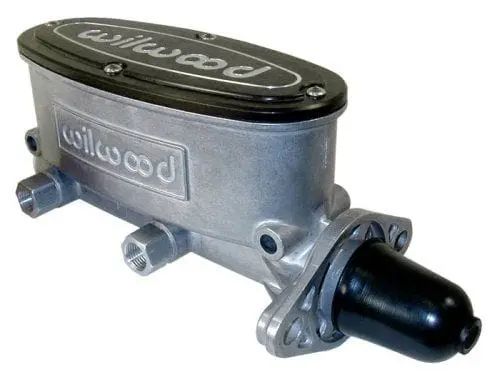

7/8″ Aluminum Tandem Master Cylinder – Dual-Chamber Brake & Clutch Setup With Pushrod (Wb260-9439)

Description

7/8″ Aluminium Tandem Chamber Master Cylinder with Push Rod

WB260-9439

260-9439

Wilwood’s tandem chamber master cylinders are fully machined from a High-pressure die casting of a premium alloy, it incorporates slotted mounting flange to accommodate mount centres between 3.22″ to 3.40″ and also features side-hole mounts on 6.40″ centres Master cylinder is has full separation between the front and rear chambers . Dual outlets allow for right or left hand plumbing based on mount location. Offers a total piston stroke of 1.10″ and a 2:1 volume ratio between the primary and secondary chambers. Available in 7/8″, 1″ or 1-1/8″ bore sizes. Available also in a media burnished version and a black E-coat finished units
