Description
| Mfr # | 907737002 |
| Promotion Restriction | Not eligible for promotion |

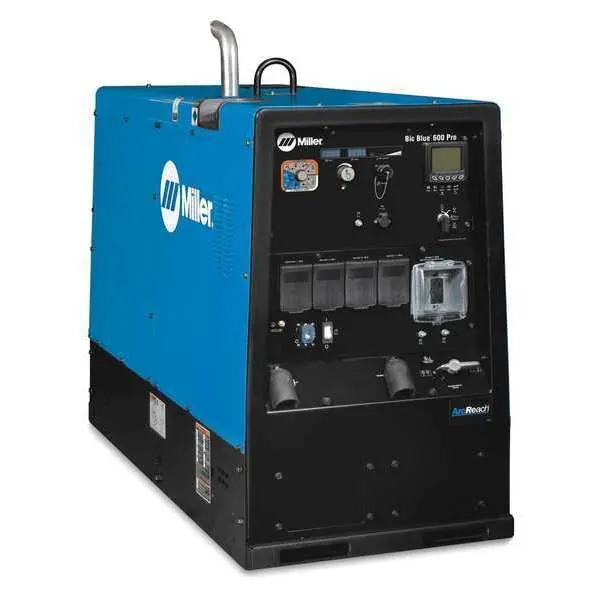

| Item | Engine-Driven Welder |
| Series | Big Blue(R) 600 Pro |
| Start Type | Electric |
| Rated Output CC/DC | 500A @ 100%, 550A @ 60%, 600A @ 40% |
| Amperage Range | 20 to 600 |
| Continuous Auxiliary Power | 20,000 W |
| Peak Auxiliary Power | 27,000 W |
| Engine Brand | Kubota |
| HP | 48.9 hp |
| Fuel Type | Diesel |
| Phase | 3 |
| Includes | Air Cleaner Restriction Indicators, ArcReach Remote Control Technology, FA-1D Lockable Flame Arrestor Fuel Cap, Spark Arrestor |
| Fuel Tank Capacity | 25 gal |
| Stick Welding Minimum Output Current | 20 A |
| Open Circuit Voltage | 92 V DC |
| Stick Welding Maximum Output Current | 600 A |
| Weight | 1,765 lb |
| Generator Fuel Type | Diesel |
| Welding Mode | CC/CV |
| Engine Model | Kubota V2403 |
| For Material Type | Stainless Steel, Steel |
| TIG Welding Output @ Duty Cycle | 500 A @ 40 V,100%, 550 A @ 42 V, 60%, 600 A @ 42 V, 40% |
| MIG Welding Maximum Output Current | 600 A |
| MIG Welding Output @ Duty Cycle | 500 A @ 40 V,100%, 550 A @ 42 V, 60%, 600 A @ 42 V, 40% |
| Coolant Tank Capacity | 9 qt |
| Generator Outlet Type | 14-50R, 15-50R, 5-20R, L6-30R |
| TIG Welding Minimum Output Current | 20 A |
| Max. Amperage Range (Stick) | Greater than 300 A |
| Horsepower Range | Greater than 30 hp |
| Oil Capacity | 10 qt |
| Sound Level | 65.9 dB (Idle), 74.3 dB (Weld) |
| Rated Output at Duty Cycle (Stick) | 500 A @ 100%, 550 A @ 60%, 600 A @ 40% |
| Horsepower | 49 hp |
| Stick Welding Output @ Duty Cycle | 500 A @ 40 V,100%, 550 A @ 42 V, 60%, 600 A @ 42 V, 40% |
| Circuit Breaker | Yes |
| Fuel Tank Capacity Range | Greater than 20 gal |
| Enhanced Process | Pulsed MIG (GMAW-P), RMD |
| Generator Outlets | 20 A 120V GFCI 5-20R (4), 20 A 240V L6-30R (2), 50 A 120/240V 14-50R, 50 A 240V 15-50R |
| Welder Type | Truck Mount |
| TIG Welding Maximum Output Current | 600 A |
| Polarity | DC |
| Model | 907737002 |
| Welder Model Type | Truck Mount |
| Process | Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) |
| brand-mfr model | MILLER ELECTRIC – 907737002 |
