Description

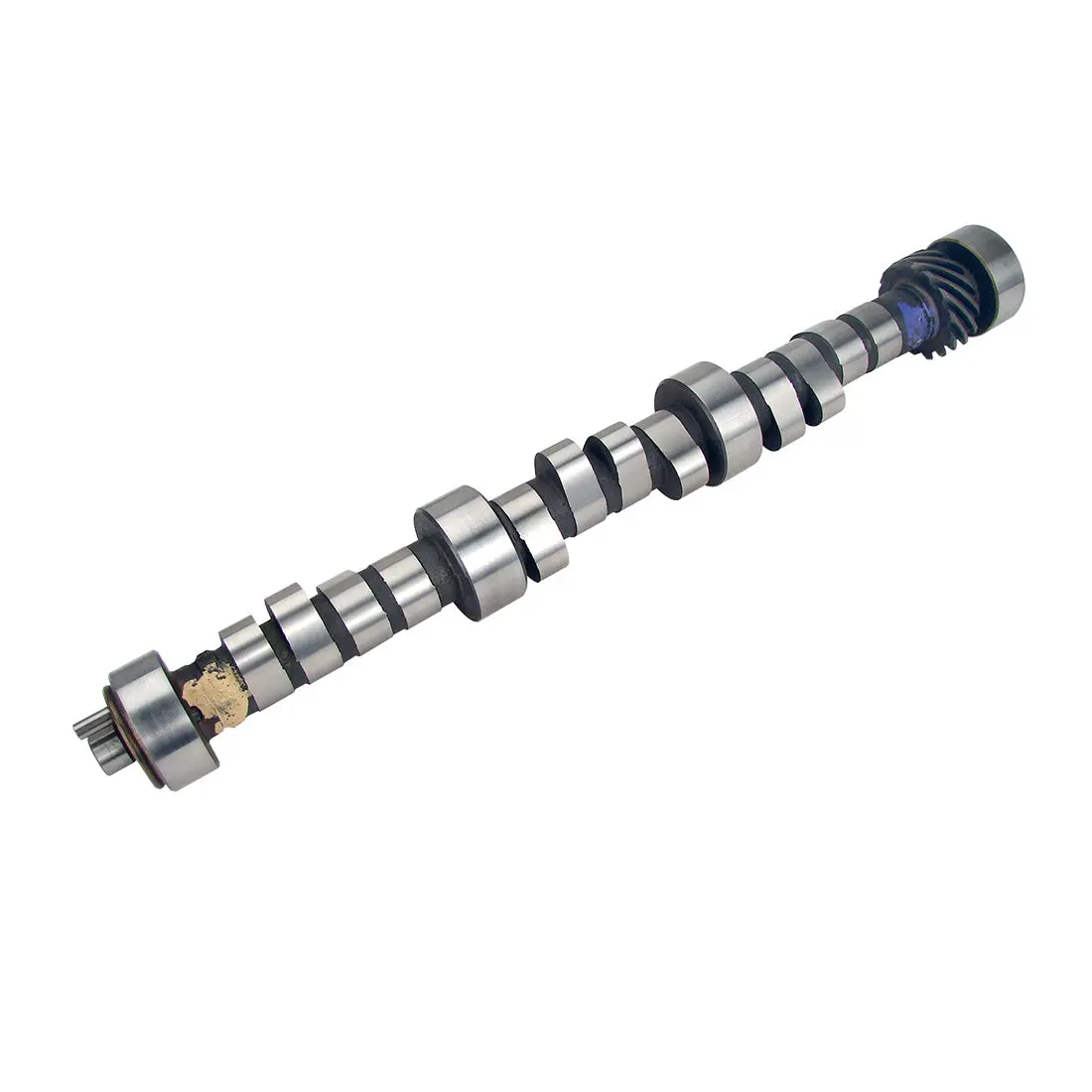

XE 224/230 Hyd Roller Cam GM LT1/LT4
Best cam for modified LT1, better exhaust and 2000+ converter. Requires custom tuning.
| UPC | 036584063254 |
|---|---|
| Manufacturer | COMP Cams |
| Warranty | 12 Months |
| Emissions Code | |
| Engine Family | GM LT1 and LT4 350 c.i. 8 Cylinder (1995-1997) |
| RPM Operating Range | 1,800-5,800 |
| Cam Type | Hydraulic Roller |
| Camshaft Series | Xtreme Energy |
| Camshaft Gear Attachment | 3-Bolt |
| Usage | Street/Performance |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Advertised Intake Duration | 276 |
| Advertised Exhaust Duration | 281 |
| Intake Duration at .050 Inch Lift | 224 |
| Exhaust Duration .050 Inch Lift | 230 |
| Intake Valve Lift | 0.503 |
| Exhaust Valve Lift | 0.51 |
| Lobe Lift Intake | 0.335 |
| Lobe Lift Exhaust | 0.34 |
| Lobe Separation | 112 |
| Intake Centerline | 108 |
| Valve Timing Lift | 0.006 |
| Exhaust Close ATDC | 24 |
| Intake Open BTDC | 30 |
| Exhaust Open BBDC | 76 |
| Intake Close ABDC | 66 |
| Make | GM |
| Engine | LT1 and LT4 350 c.i. 8 Cylinder (1995-1997) |
| Lifter Type | Hydraulic Roller |
| Usage | Street, Street / Strip |
