Description
Edelbrock Stage 1 Supercharger Kit #1532 For 2009-10 Chrysler/Dodge 5.7L W/ Tune

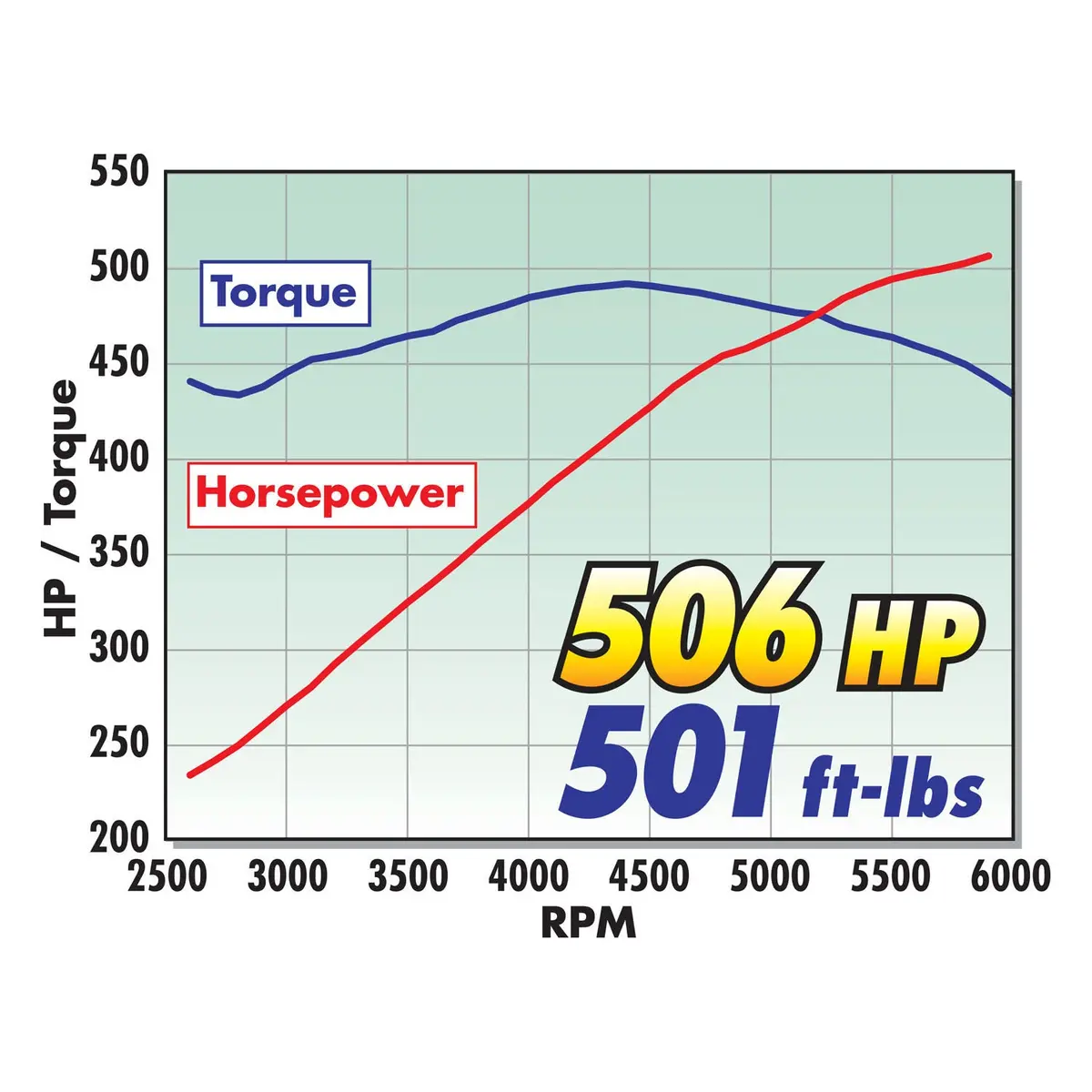

The Edelbrock Supercharger System #1532 is designed for your 2009-10 5.7L HEMI Chrysler 300, Dodge Charger or Challenger and produces 506 horsepower and 501 torque at the flywheel. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.
| Part Type | Supercharger Kit |
|---|---|
| Manufacturer | Edelbrock |
| Application | Application Specific |
| UPC | 085347015320 |
| System Type | Stage 1 – Street System |
| Vehicle Model | Charger |
| Housing Material | Cast Aluminum |
| Gasket Or Seal Included | Yes |
| Quantity | Kit |
| Oil Capacity | 150 mL |
| Center Housing Cooling Type | Intercooler |
| Internal Step Up | Yes |
| Mounting Bracket Included | Yes |
| Outside Pulley Diameter | 3.875 in |
| Maximum Torque | 501 ft-lb |
| Fuel Injector Type | 46 lb/hr |
| Maximum Horsepower | 506 |
| Availability Note | Available to Order |
| Warranty | 36 Months |
| Emissions Code | EO Number: D-215-89 |
| Application Summary | Chrysler:Gen III HEMI:345 (5.7L) |
| Hazardous Materials Warning |  WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Maximum Boost Pressure | 6 PSI |
| Pulley Belt Width | 6-Rib |
