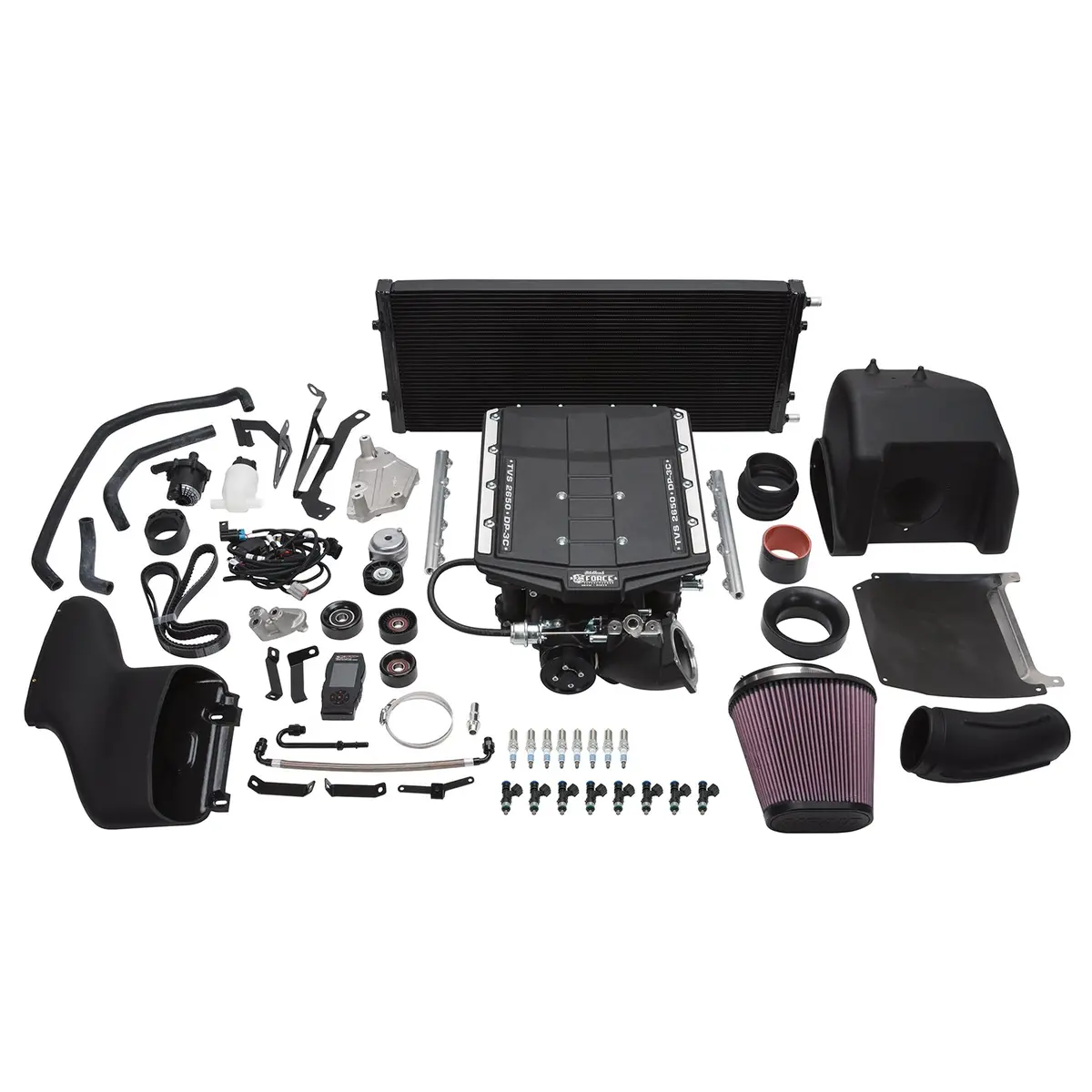

Edelbrock Stg 1 Supercharger #15570 For 15-17 Ford F-150 Coyote 5.0L 4V W/O Tune
The Edelbrock supercharger Stage 1 Street System part #15570 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
| Part Type | Supercharger Kit |
|---|---|
| Manufacturer | Edelbrock |
| Application | Application Specific |
| UPC | 085347155705 |
| System Type | Stage 1 – Street System |
| Vehicle Model | F-150 |
| Housing Material | Cast Aluminum |
| Gasket Or Seal Included | Yes |
| Quantity | Kit |
| Oil Capacity | 150 mL |
| Center Housing Cooling Type | Intercooler |
| Internal Step Up | Yes |
| Mounting Bracket Included | Yes |
| Outside Pulley Diameter | 3.5 in |
| Fuel Injector Type | 50 lb/hr |
| Availability Note | Available to Order |
| Warranty | 36 Months |
| Emissions Code | EO Number: D-215-97 |
| Application Summary | Ford:Modular Coyote 4V:302 (5.0L) |
| Hazardous Materials Warning |  WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Installation Notes |
|
| Finish | Black Powder Coated |
| Maximum Boost Pressure | 11 |
| Pulley Belt Width | 6-Rib |
