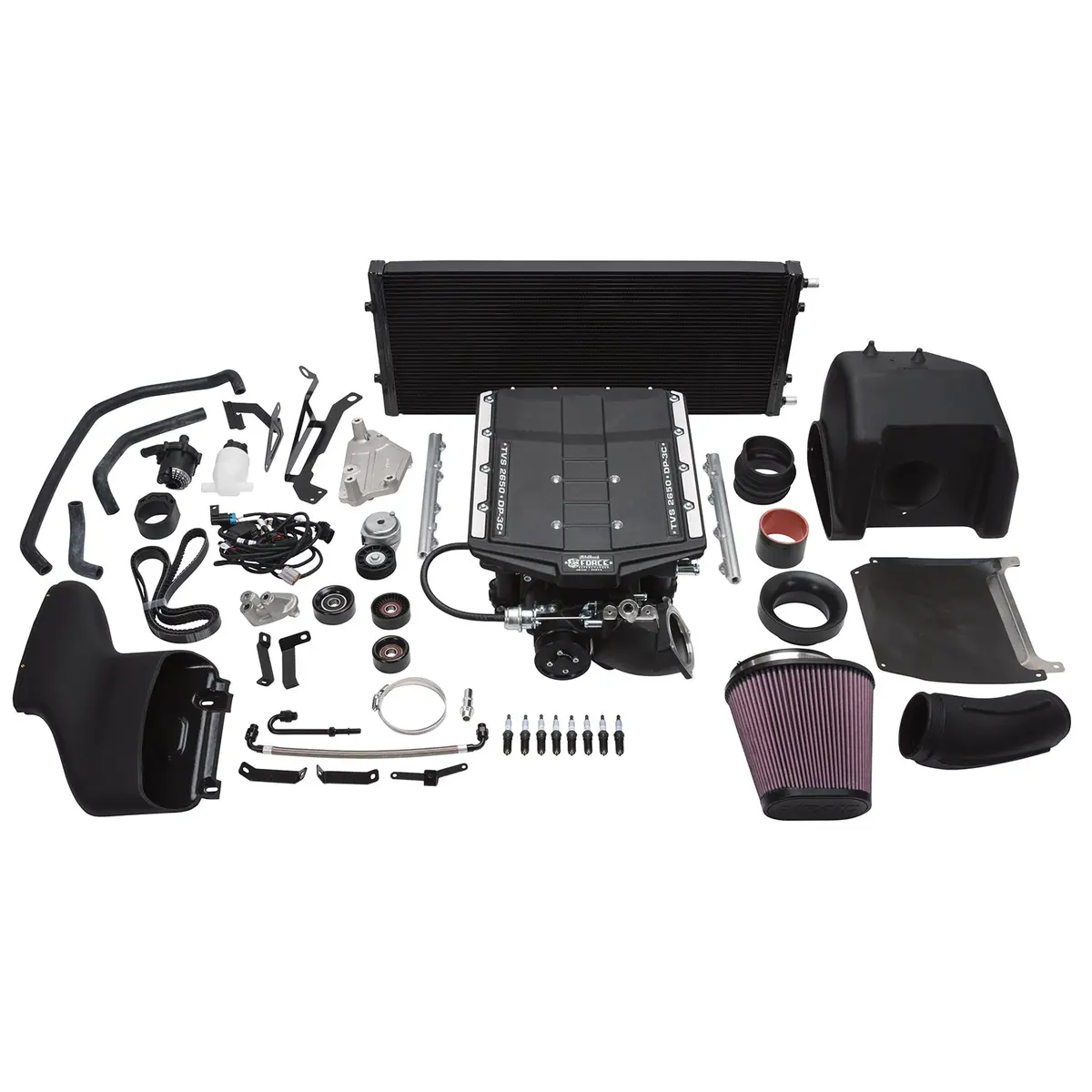

Edelbrock 15836 Stage 1 Supercharger Kit – Compatible with 2018 Ford F-150 5.0L Coyote Gen III Engine, Includes Tuning

Description

Edelbrock Stg 1 Supercharger #15836, 2018 Ford F-150 Coyote Gen III 5.0L W/ Tune
The Edelbrock Supercharger System part #158360 is designed for use on a 2018 Ford F150 with Gen III DI/PI 5.0L Coyote engine and 10-Speed automatic transmission. The heart of this system is the high-efficiency Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. The system also features an integrated bypass valve to help eliminate parasitic loss under light throttle, improving fuel mileage potential. The front drive, front inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power-robbing jackshaft. Keeping the air cool is a high-capacity, Dual-Pass 3-Core (DP3C) air-to-water intercooler and duel pass front-mount heat exchanger. The Edelbrock #158360 system is 50-state emissions legal and provides the best combination of performance and reliability for your F150 whether you plan to tow a trailer, haul heavy loads, or you just want to feel your F-150 come to life! HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. Which can be requested by contacting the Edelbrock calibration team at calibration@edelbrock.com. Tunes for 91 and 93 octane fuels are available upon request. This system will produce approximately 601whp 468wtq using 93 octane.

Part Type	Supercharger Kit
Manufacturer	Edelbrock
Application	Application Specific
UPC	085347158362
System Type	Stage 1 – Street System
Vehicle Model	F-150
Grade Type	Performance
Housing Material	Cast Aluminum
Gasket Or Seal Included	Yes
Quantity	Kit
Oil Capacity	150 mL
Center Housing Cooling Type	Intercooler
Internal Step Up	Yes
Mounting Bracket Included	Yes
Outside Pulley Diameter	3.5 in

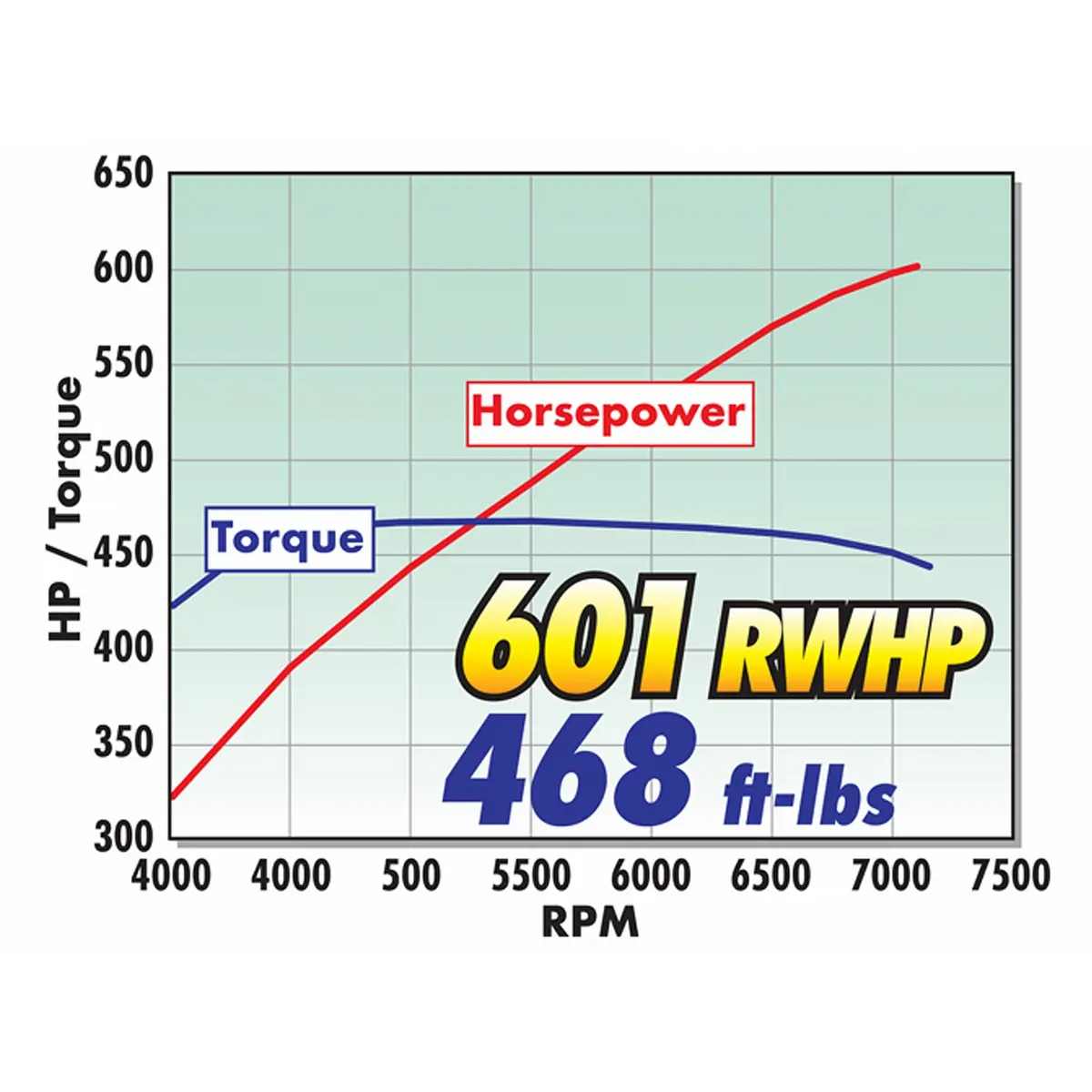

Maximum Torque	468RW ft-lb
Maximum Horsepower	601RW
Availability Note	Available to Order
Warranty	36 Months
Emissions Code	EO Number: D-215-104
Application Summary	Ford:Coyote 4V:302 (5.0L)
Hazardous Materials Warning	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Supercharger systems without tunes are not eligible for supplemental warranty. Supercharger systems sold without tunes are only emissions legal when used with the correct Edelbrock tune, which can be downloaded on the supercharger tech support page.
Color	Black
Finish	Black Powder Coated
Maximum Boost Pressure	13 PSI
Pulley Belt Width	6-Rib
