Description
Brand: Edelbrock
Manufacturer’s Part Number: 61179
Part Type: Cylinder Heads

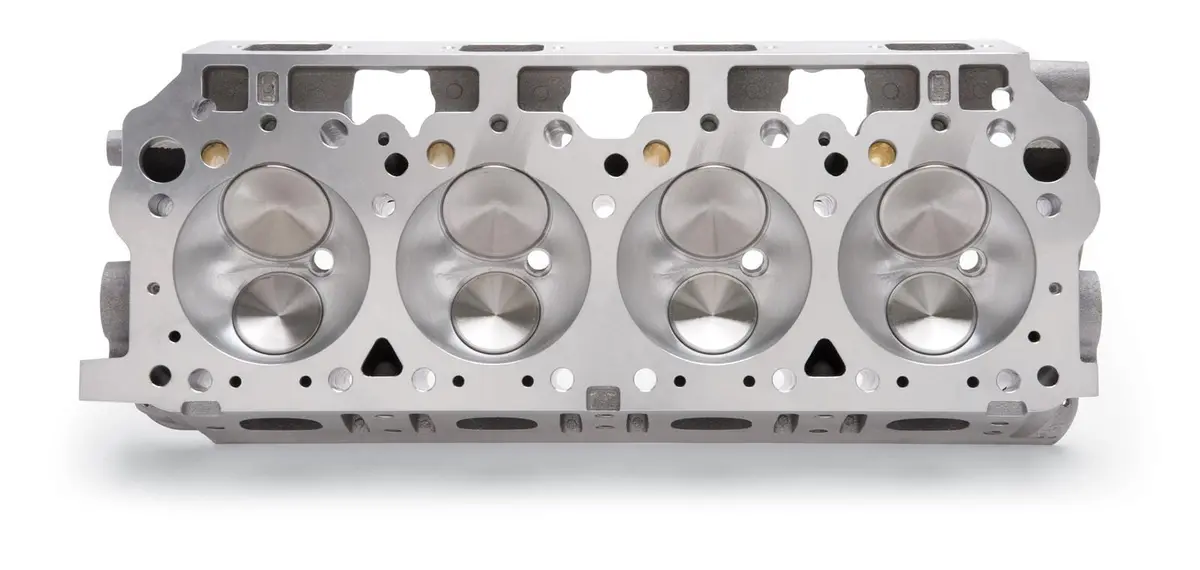

Product Line: Edelbrock Victor Jr. CNC Chrysler Cylinder Heads
Automotive Fittings Part Number: EDL-61179
UPC: 085347611799
Combustion Chamber Volume (cc): 170
Intake Runner Volume (cc): 245cc
Exhaust Runner Volume (cc): 105cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Intake Valve Diameter (in.): 2.320 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.940 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.700 in.
Camshaft Style: Hydraulic flat tappet
Outside Diameter of Outer Spring (in.): 1.540 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Accessory Bolt Holes Drilled: Yes
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: For use with hydraulic flat tappet cams only.
Description:
Edelbrock Victor Jr. CNC Chrysler cylinder heads are designed for high output Chrysler 426-572 HEMI engines. They feature fully CNC ported combustion chambers and CNC blended seats for optimal air flow performance. These heads also feature a revised exhaust valve angle to accommodate larger intake valves and feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
