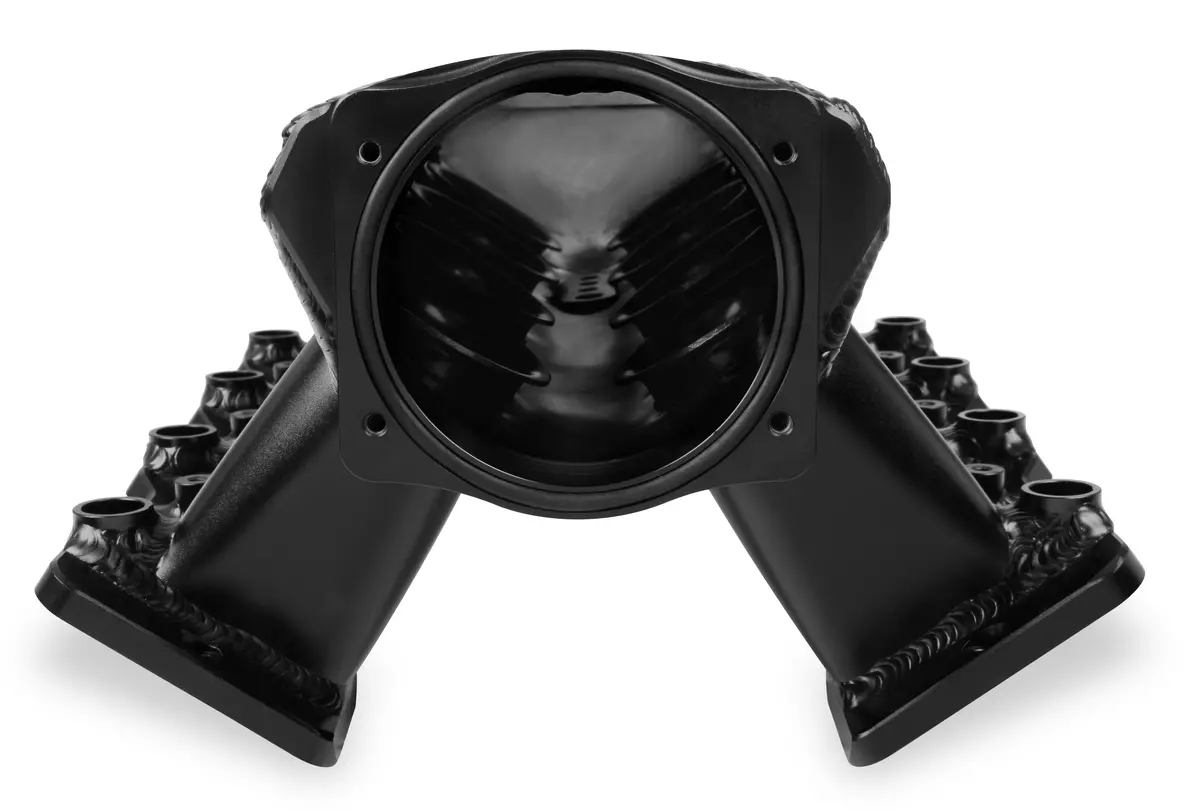

Holley Sniper 102mm Hi-Ram Intake Manifold – Sheet Metal Construction for GM LS1, LS2, LS6 Engines

Description

SNIPER EFI LS1/2/6 FABR. IM, EFI,102MM

• Black Finish creates stealthy under-hood styling
• 3mm (1/8″) thick T6061 sheet aluminum construction for maximum durability
• 102mm throttle bore opening for increased air flow
• 100% TIG welded for strength and durability
• Includes 3/8″ Fuel rail kits (Sniper logo laser engraved)
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• Product includes all gaskets and hardware for a hassle-free installation
• The Sniper intake will only accept EV1 style injectors.

Basic Operating RPM Range
2200-6800 RPM
Brand
Holley Sniper EFI
Category
Engine
Color
Black
Construction
Fabricated
EGR Port
No
Emission Code
4
Engine
GM Gen III/IV (LS)
Finish
Black
Front Height
8.267 inch
Front Maximum Height
8.267 IN
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Injector Style Provision
EV1
Intake Port Gasket(s) Included
Yes
Manifold Type
Fabricated
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Product Type
Intake Manifold
Rear Height
7.559 inch
Rear Maximum Height
7.559 IN
Removable Runners
No
Removable Top/Lid
No
RPM Power Band
2200-6800 RPM
Runner Length
4.921″ (125mm)
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Bore Diameter
102 MM
Throttle Body Included
No
Throttle Bore
102mm
Vacuum Ports
(3) 1/8″-28BSPT & (1) 1/4″-19BSPT
