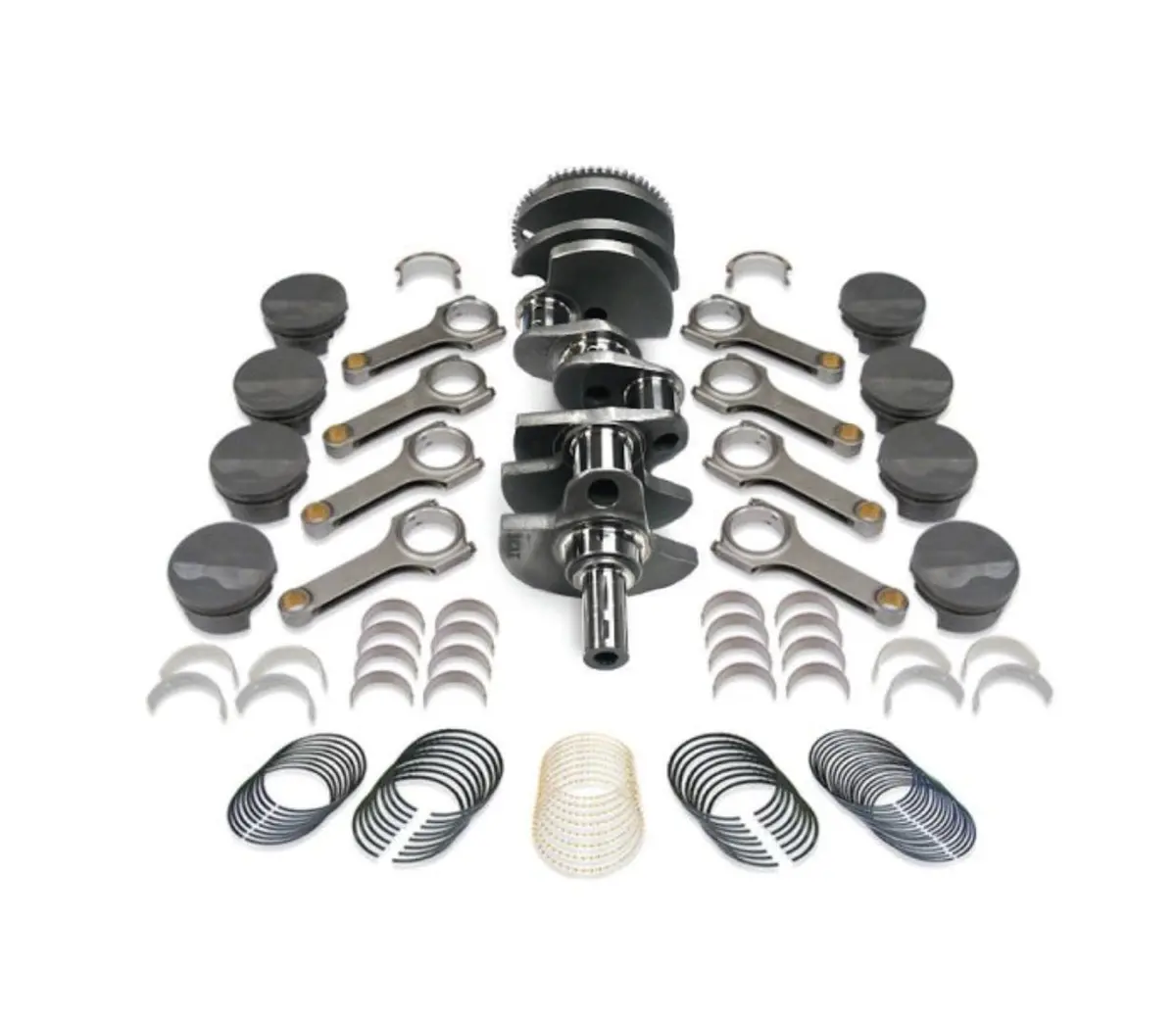

SCAT Forged Stroker Rotating Assembly for GM LS Gen III & IV 6.0L Engines

Description

Assembly Includes

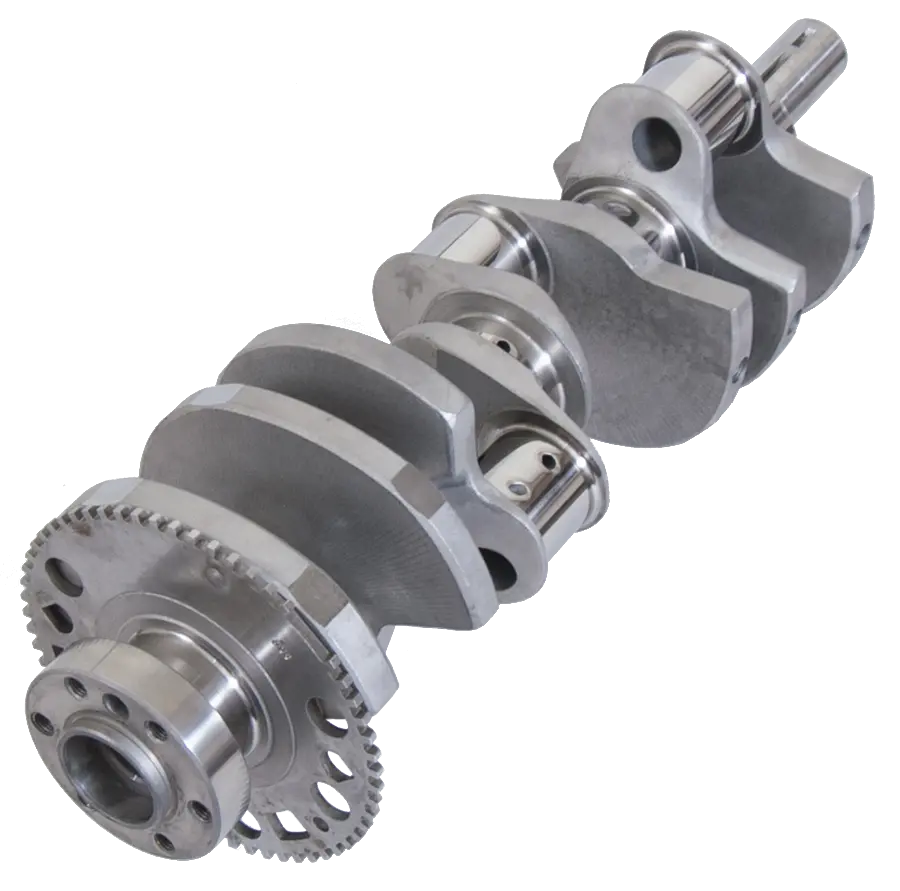

Scat 4340 Forged Crankshaft (24X or 58X Reluctor)
Mahle PowerPak 930227930 -5.8cc Flat Top Pistons with Rings

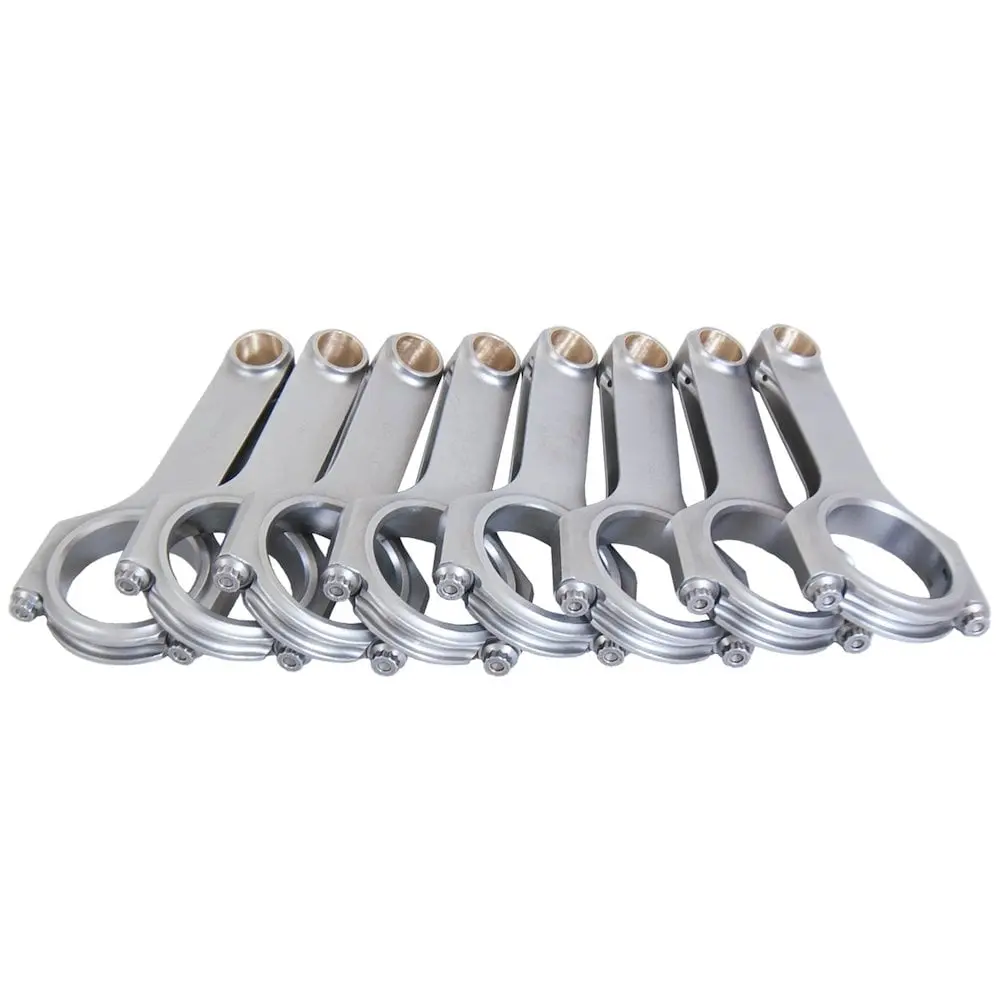

Scat 6612521 4340 Forged 6.125″ HBeam Connecting Rods
Engine Pro 12-2199H Race Main Bearings
Engine Pro 11-663H Race Connecting Rod Bearings
Piston Details
-High strength, 2618 aluminum alloy with a slipper skirt forging
-HV385 Coated steel 1.0mm top, Napier 1.0mm 2nd and 2.0mm Oil ring set
-Top ring land down .250 and .200 2nd land thickness
-Phosphate coated and MAHLE’s GRAFAL® skirt coating to reduce drag and wear
-Combination valve pocket, Fits LS1, LS2 LS3/L92 15 degree, and LS7 12 degree heads
-Compression Ratio 65cc 10.4:1
-Compression Ratio 70cc 9.9:1
-Compression Ratio 72cc 9.7:1
