Edelbrock Stage 1 Supercharger Kit #1571 For 14-19 Corvette Stingray LT1 W/ Tune

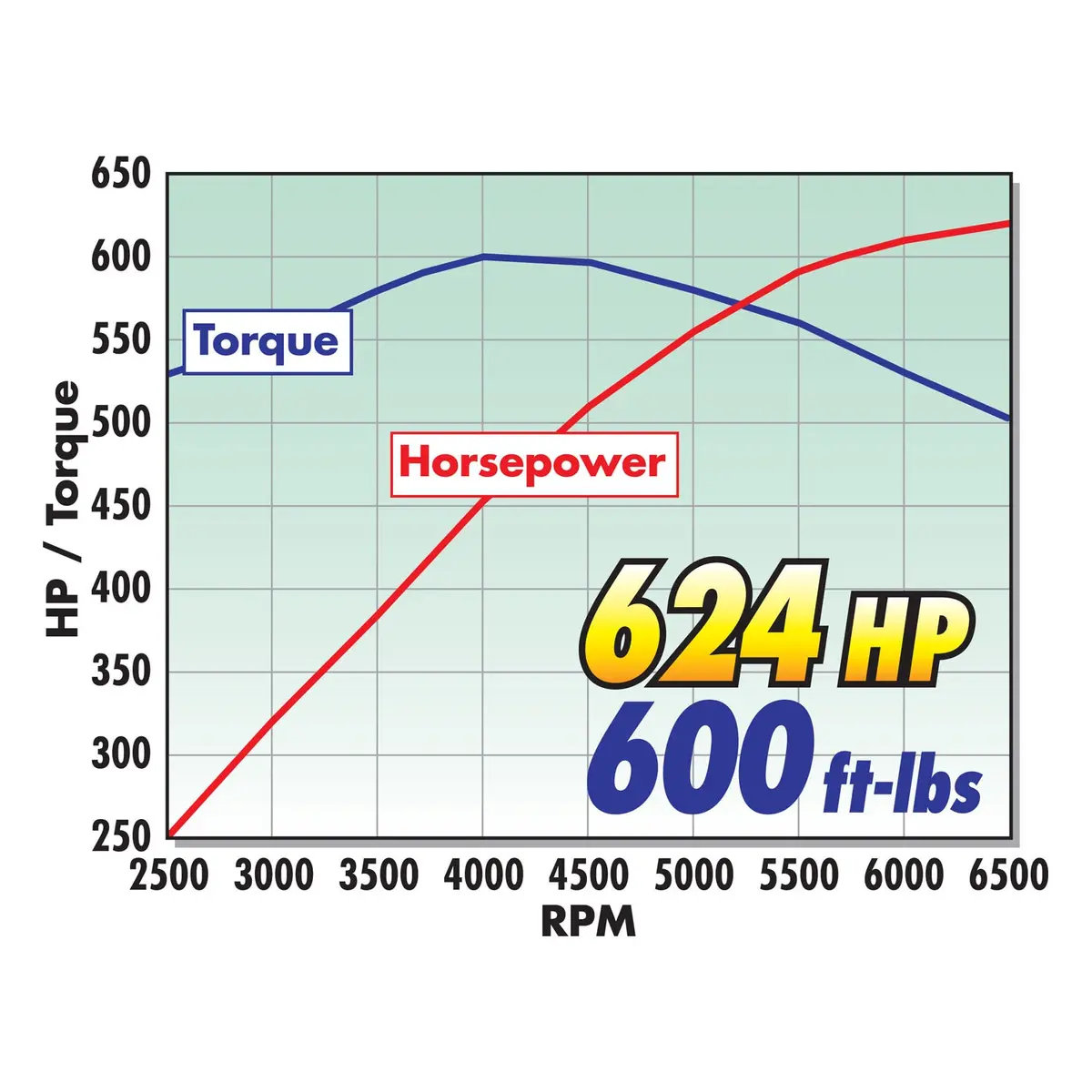

The Edelbrock supercharger Stage 1 Street System part #1571 for 2014-19 Corvette Stingray increases the performance of your LT1 engine to 624 horsepower and 600 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1571 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
| Part Type | Supercharger Kit |
|---|---|
| Manufacturer | Edelbrock |
| Application | Application Specific |
| UPC | 085347015719 |
| System Type | Stage 1 – Street System |
| Vehicle Model | Corvette |
| Grade Type | Performance |
| Housing Material | Cast Aluminum |
| Gasket Or Seal Included | Yes |
| Quantity | Kit |
| Oil Capacity | 150 mL |
| Center Housing Cooling Type | Intercooler |
| Internal Step Up | Yes |
| Mounting Bracket Included | Yes |
| Outside Pulley Diameter | 3.5 in |
| Maximum Torque | 600 ft-lb |
| Maximum Horsepower | 624 |
| Availability Note | Available to Order |
| Warranty | 36 Months |
| Emissions Code | EO Number: D-215-103 |
| Application Summary | Chevrolet:Small-Block Gen V LT1:376 (6.2L) |
| Hazardous Materials Warning |  WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Color | Red |
| Finish | Black Powder Coated |
| Inside Diameter | 1.251 in |
| Maximum Boost Pressure | 5.5 PSI |
| Outside Diameter | 3.875 in |
| Pulley Belt Width | 10-Rib |
