Description
Edelbrock Stage 2 Supercharger #15711 For 14-19 Corvette Stingray LT1 W/ Tune

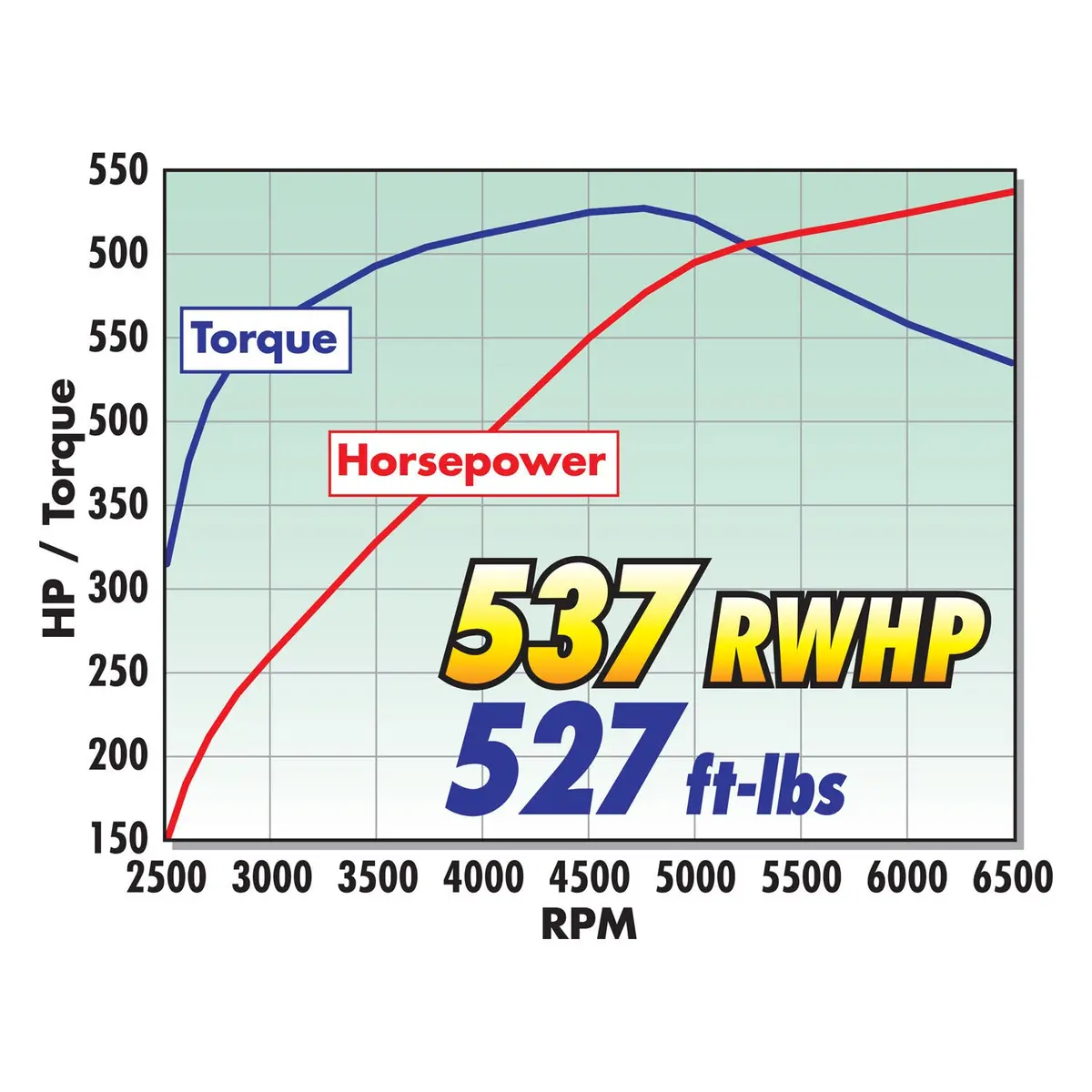

The Edelbrock supercharger stage 2 street/strip system part #15711 for 2014-19 Chevy Corvette Stingray LT1 increases the performance of your LT1 engine to 537 horsepower and 527 ft-lbs of torque to the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #15711 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
| Part Type | Supercharger Kit |
|---|---|
| Manufacturer | Edelbrock |
| Application | Application Specific |
| UPC | 085347157112 |
| System Type | Stage 2 – Street/Strip System |
| Vehicle Model | Corvette |
| Housing Material | Cast Aluminum |
| Gasket Or Seal Included | Yes |
| Quantity | Kit |
| Oil Capacity | 150 mL |
| Center Housing Cooling Type | Intercooler |
| Internal Step Up | Yes |
| Mounting Bracket Included | Yes |
| Outside Pulley Diameter | 3.25 in |
| Maximum Torque | 527RW (With 91 Octane); 534RW (With 93 Octane) ft-lb |
| Maximum Horsepower | 536RW (With 91 Octane); 551RW (With 93 Octane) |
| Availability Note | Available to Order |
| Warranty | 36 Months |
| Emissions Code | EO Number: D-215-103 |
| Application Summary | Chevrolet:Small-Block Gen V LT1:376 (6.2L) |
| Hazardous Materials Warning |  WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Maximum Boost Pressure | 7.5 PSI |
| Pulley Belt Width | 10-Rib |
